Name: AirDoor: No. 1 In Energy-Saving Air Curtain Technology
Brand: Wirth Research

AirDoor is a revolutionary alternative to traditional air curtains

It employs a three-sided air curtain with active, targeted airflow to enhance interior comfort and boost the building’s energy efficiency. Situated directly inside the entrance, it generates a plume of air to reduce weather-related infiltration, such as wind (temperature & humidity disruption), dust, pollution and wind-driven rain (slippery floors). This enables retailers to better utilise the front-of-store area and helps food display equipment run more efficiently. While heated/cooled air curtains cost you money, AirDoor delivers a positive ROI.

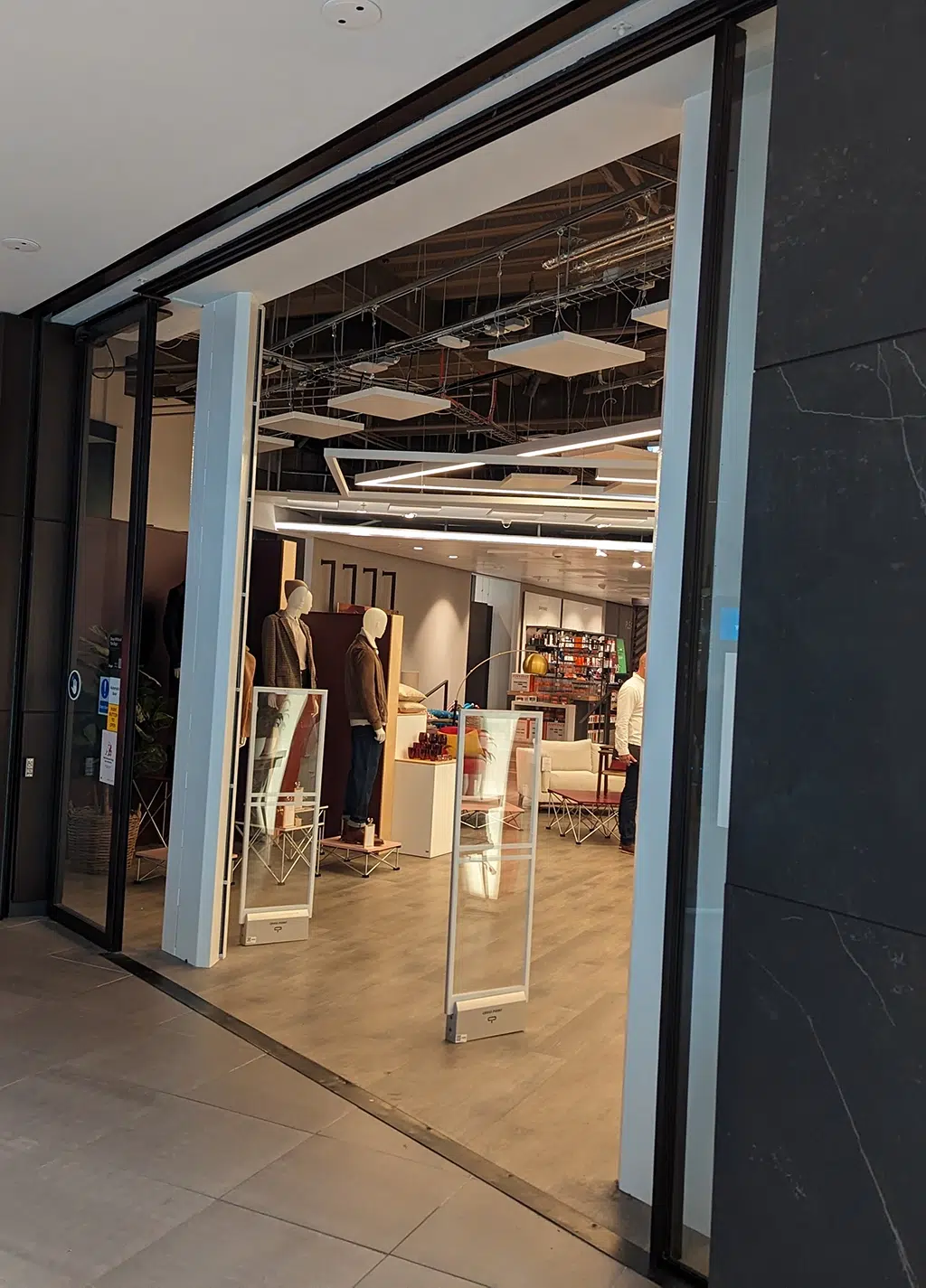

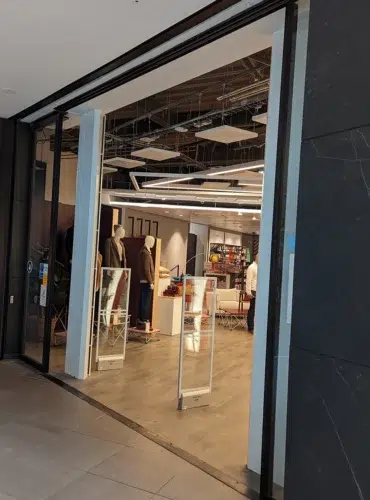

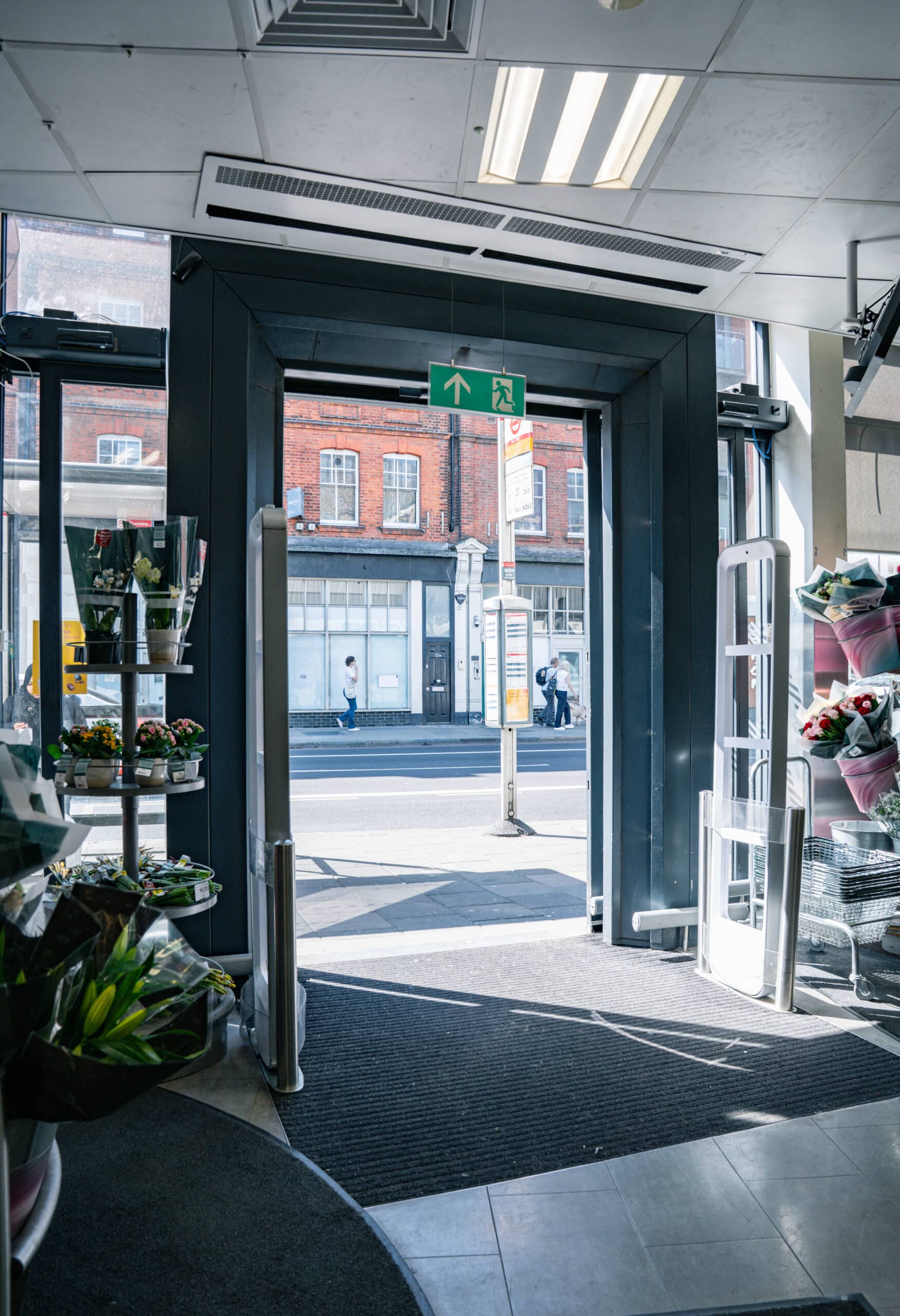

Commercial air curtain installation at John Lewis Edinburgh retail entrance showing AirDoor two-sided system

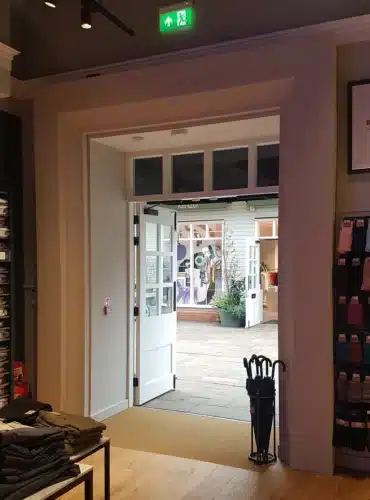

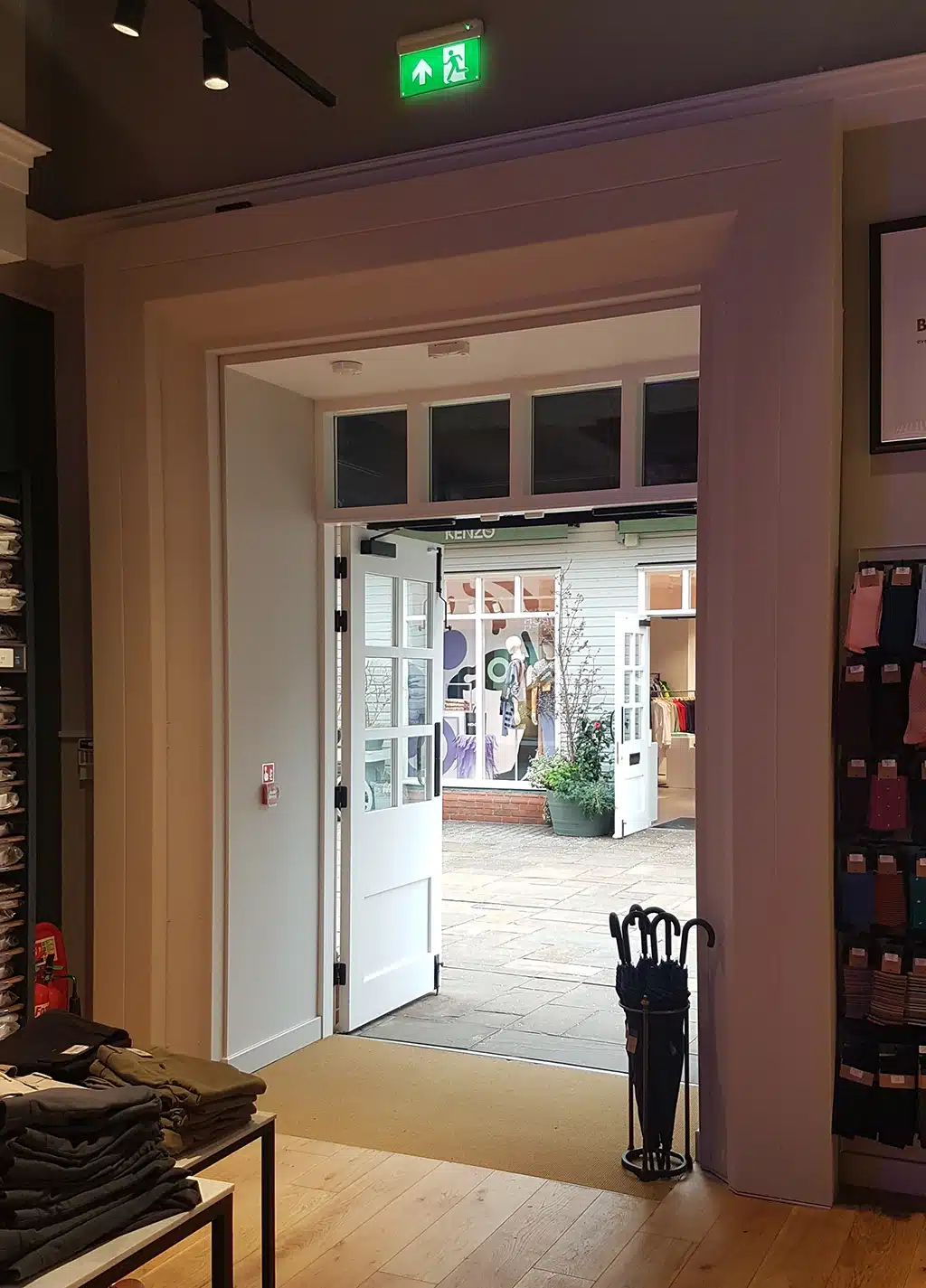

AirDoor air curtain at Charles Tyrwhitt Bicester Village entrance

AirDoor: Key Reasons for Advanced Air Curtain Tech

Keep the outside air outside

Suitable for any building entrance or exit, and in particular:

AIRDOOR BENEFITS

ENERGY & Operational savings

Increased useable space by negating the need for draught lobbies

Reduction in airborne particles such as dust and exhaust fumes to create a healthier environment for staff and visitors

Up to 31% reduction in annual gas use for a mid-sized supermarket

Up to 54% reduction in cold-weather electricity use for a boutique retail store

Payback of less than 3 years versus a conventional electric heated curtain

Reduce heat pump sizing by up to a third, and lower expenditure on HVAC plant

Massively reduced infiltration of hot and humid air, providing better comfort and far less condensation

Air Curtain Technology - Functionality and Benefits

Understanding Airdoor: How It Operates

Cold Climate

Hot Climate

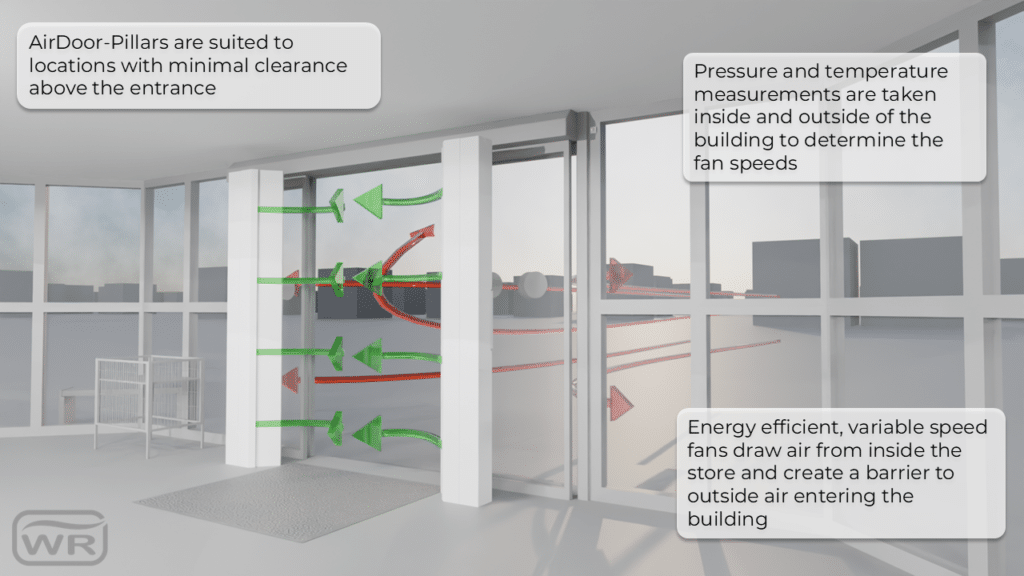

AirDoor Pillars airflow diagram showing air curtain barrier system with green arrows indicating internal airflow patterns and blue external wind arrows in cold environment

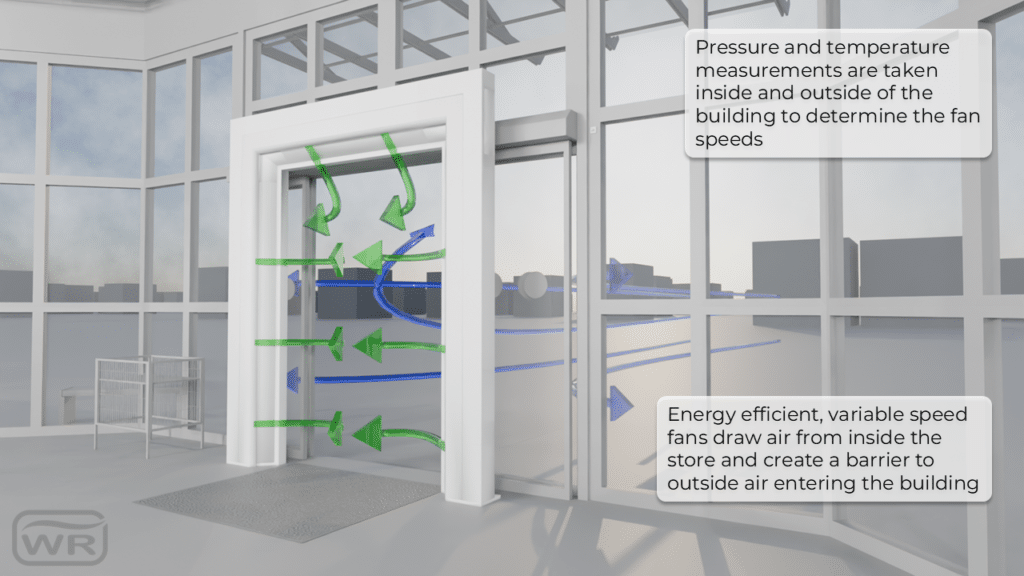

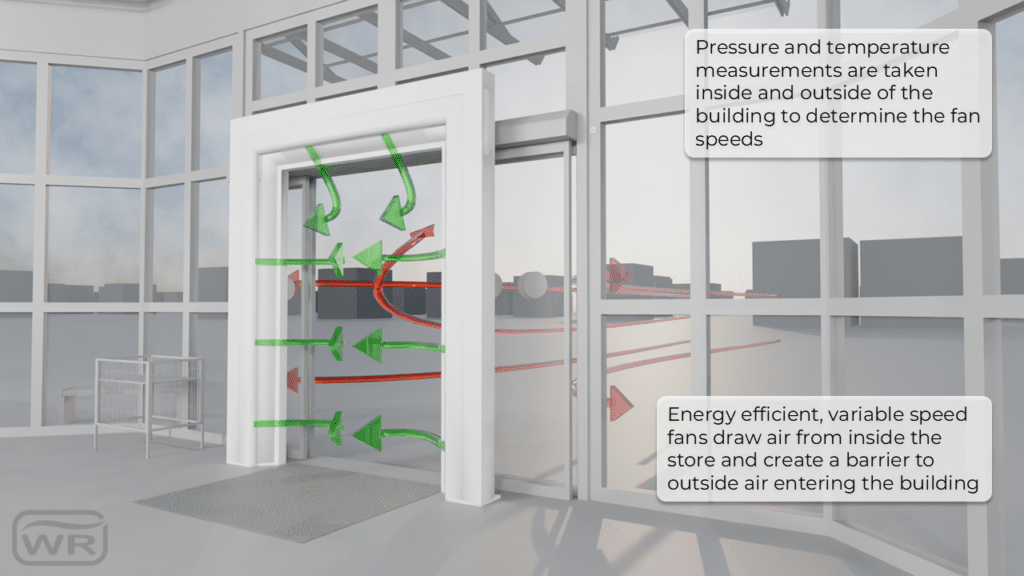

Diagram explaining how the Wirth Research AirDoor works, showing variable-speed fans creating an air barrier from internal store air to block external air, controlled by pressure and temperature sensors.

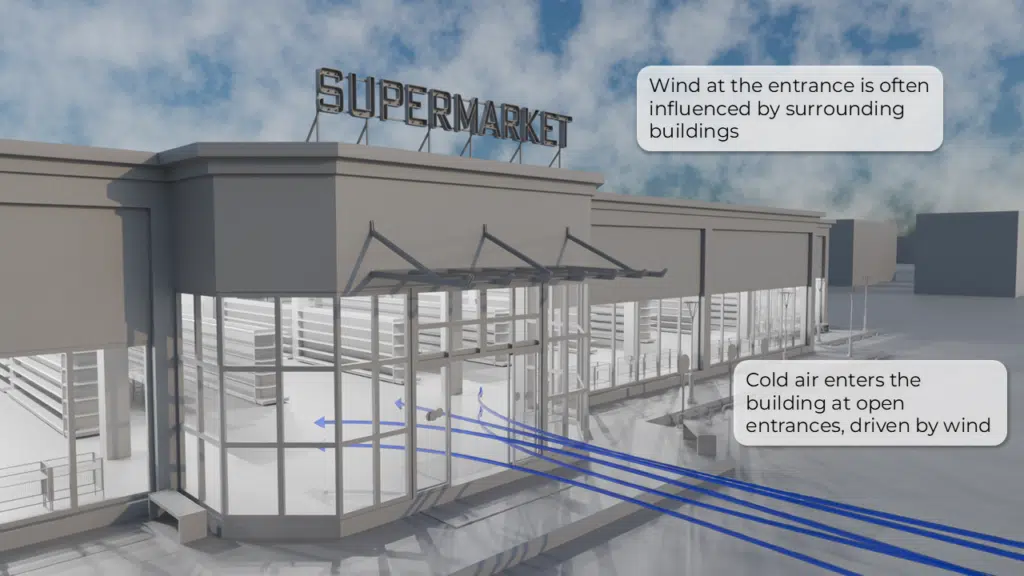

Illustration showing how wind, influenced by surrounding buildings, drives cold air into a supermarket through its open entrance, demonstrating the problem the AirDoor solves.

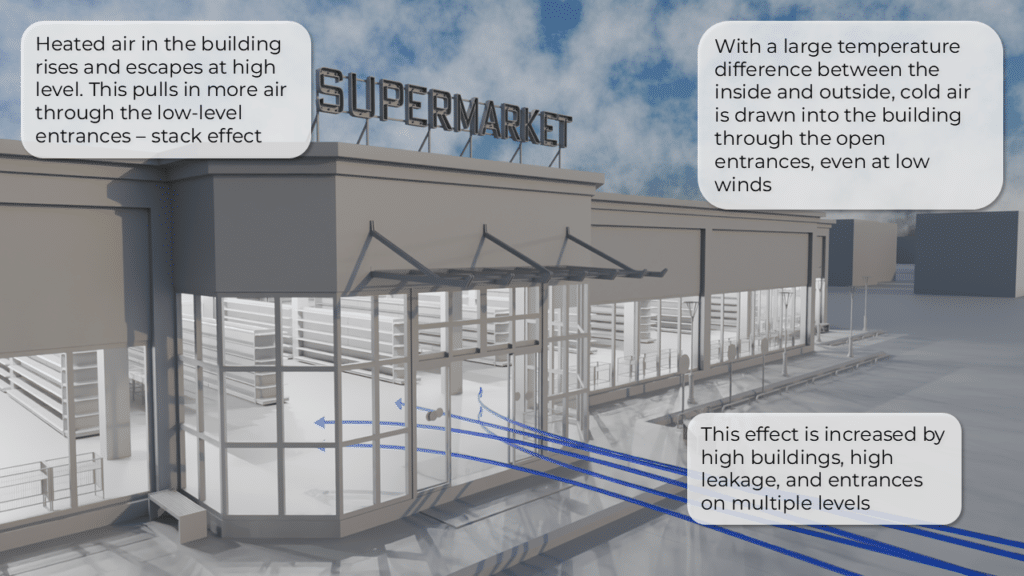

Diagram illustrating the stack effect in a supermarket, where heated air rises and escapes, pulling cold outside air in through lower-level entrances.

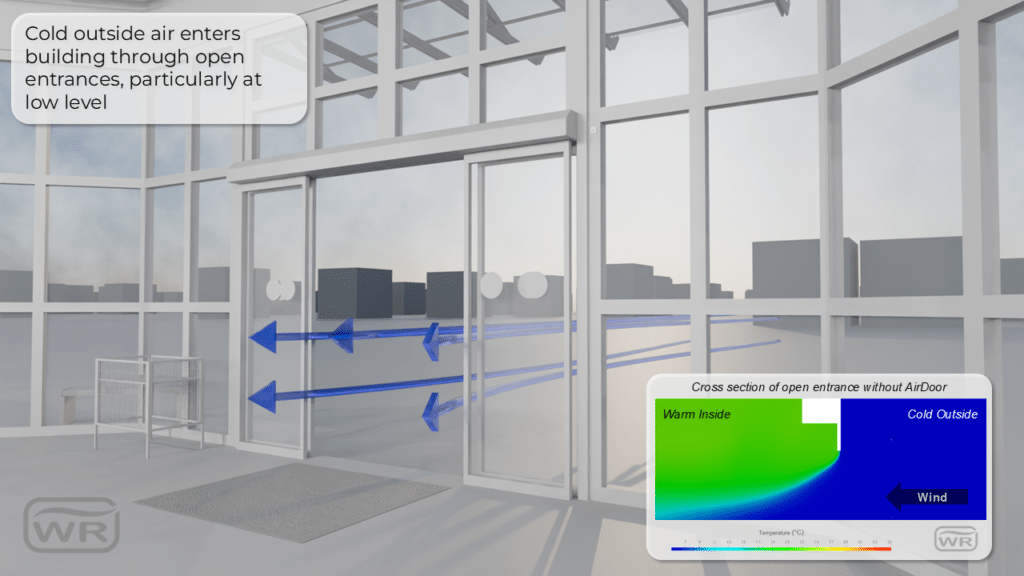

Diagram showing how cold air enters a building through an open entrance, with an inset thermal graph illustrating the mixing of warm inside and cold outside air.

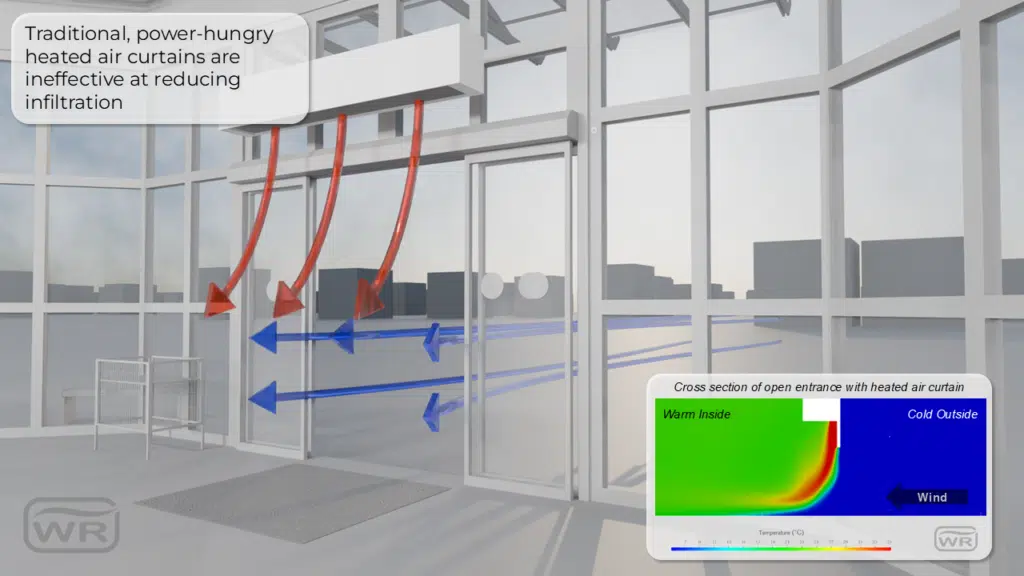

Diagram showing the ineffectiveness of a traditional heated air curtain, with a thermal graph illustrating how it fails to stop cold air from entering a building.

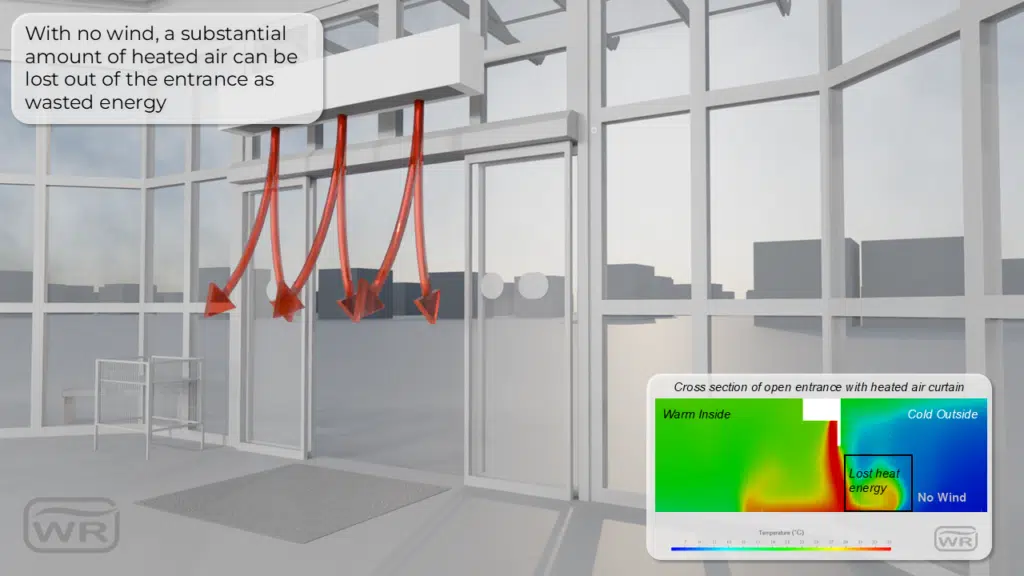

Diagram illustrating how traditional heated air curtains waste energy, showing heated air being blown out of the entrance even in no-wind conditions, with a thermal graph detailing the 'Lost heat energy'.

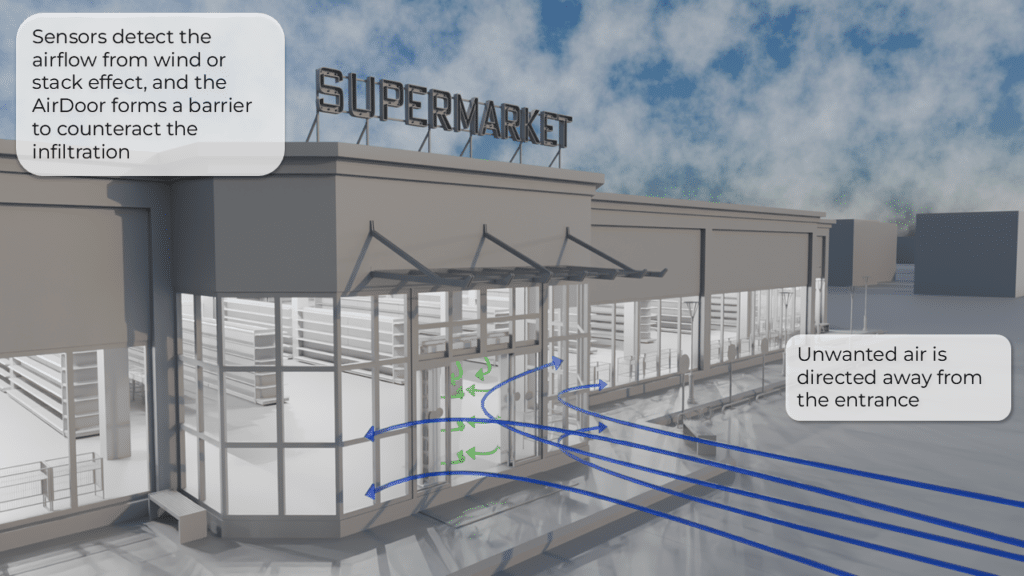

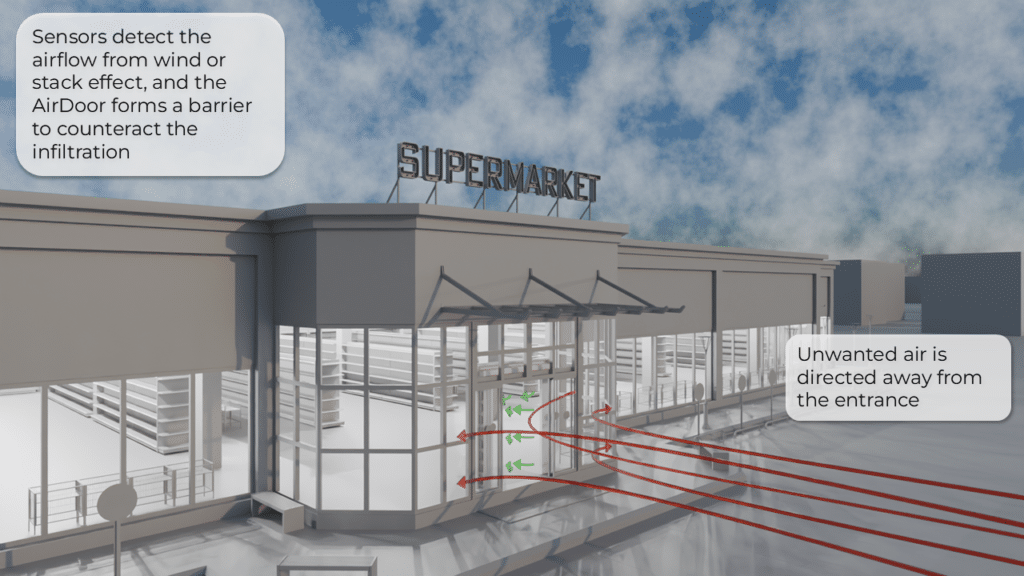

"Diagram showing how the Wirth Research AirDoor works, with sensors detecting incoming wind and stack effect, and creating an invisible barrier that directs unwanted air away from a supermarket entrance.

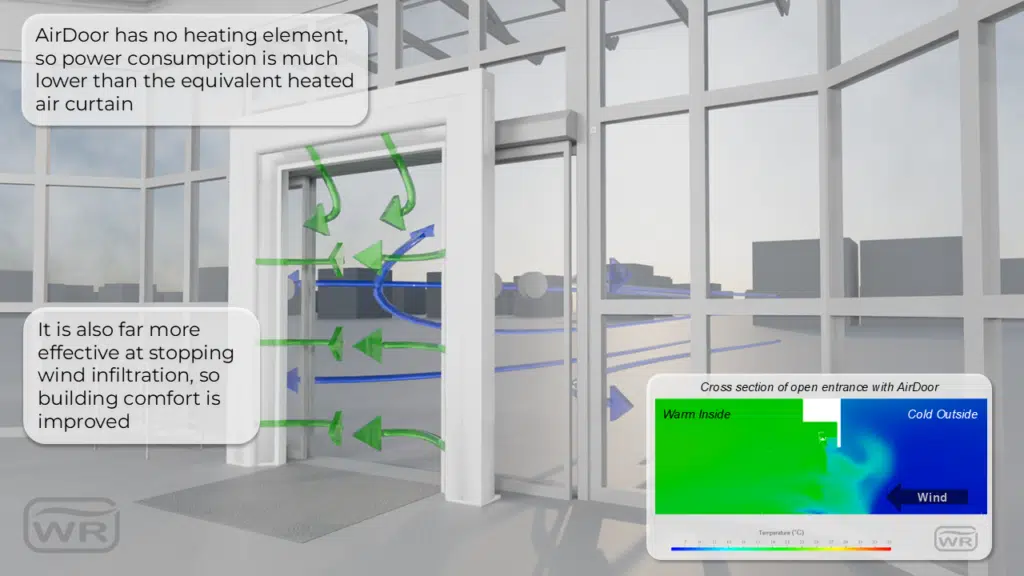

Diagram illustrating the effectiveness of the Wirth Research AirDoor, which stops wind infiltration to improve building comfort. It has no heating element for lower power consumption, and an inset thermal graph shows a clean, effective barrier between warm inside and cold outside air.

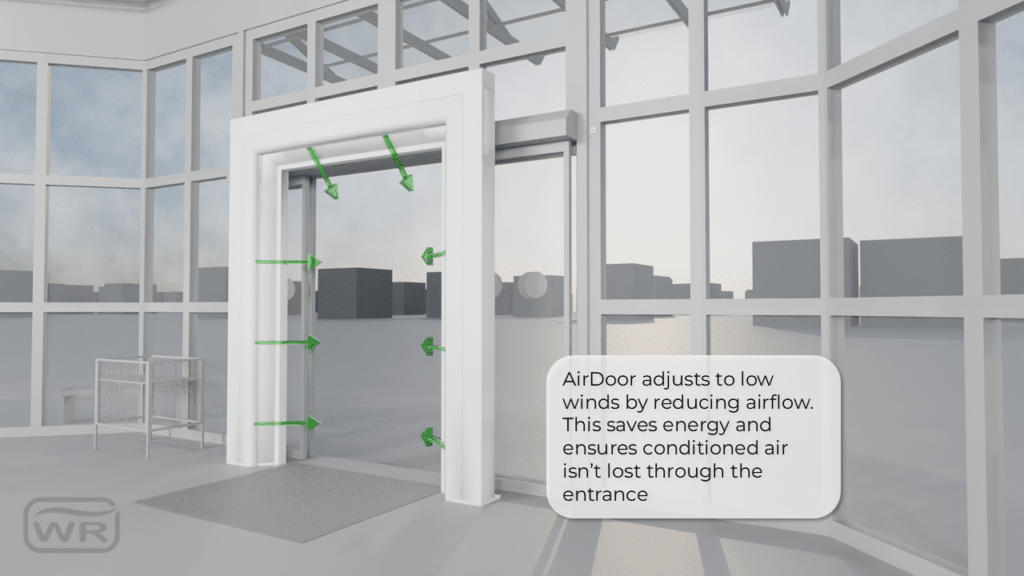

Diagram showing the Wirth Research AirDoor intelligently adjusting to low winds by reducing its airflow, which saves energy and prevents the loss of conditioned air.

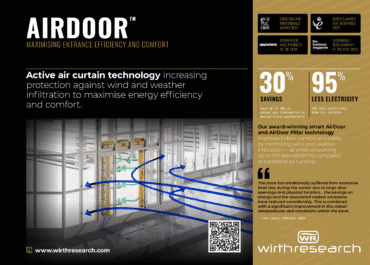

Click Below to Access the AIRDOOR Product Brochure

BROCHURE DOWNLOADS

REQUEST A CONSULTATION

TRUSTED BY

OUR CLIENTS & PARTNERS

A Green solution

Award-winning Innovation

Designed and Manufactured in the UK, AirDoor’s development was co-funded by Innovate UK, the UK Government’s innovation agency. Innovate UK is part of UK Research and Innovation, set up to drive productivity and economic growth by supporting businesses to develop and realise the potential of new ideas.

Cutting-Edge Air Curtain Technology

AWARDS for AirDoor

Judges were fulsome in their praise for the winner AirDoor. They said the company had reinvented the over-door air curtain, and addressed challenges in a sector where innovation to reduce energy consumption and heat loss is ‘long overdue’.

They praised AirDoor’s cost-effectiveness, the ease of installation and maintenance, and the remote monitoring and management features that allows the manufacturer to respond quickly to operational issues.

The awarding body stated: “The company has been on a journey from pinnacle motorsport design to using their expertise in aerodynamics and computer modelling to design sustainable solutions for problems in different sectors for instance their products are extensively used to save energy in supermarket fridges.

“Wirth is awarded the Queen’s Award for Enterprise in Sustainable Development because it is an innovative and exemplary company that has used its modelling and aerodynamic skills acquired through the motor racing industry to transition to providing energy solutions in a range of diverse industries.

“It has demonstrated leadership both within and outside the company and has had a major positive impact.”

The judging panel described AirDoor as a “New product on the market, which shows innovation solving the issue of open doors and windows on retail and other premises. Taking air curtains to a higher level whilst saving Millions of tons of Carbon.”

“[Wirth] have really thought about air movement and heat losses and gains, and created a product which automatically takes this into account, adjusting its output accordingly for maximum effect. A well thought-out solution to a common problem.”

Comments from the judging panel:

“Wirth Research have pivoted their technology over the years through dedicated research, spending a significant amount of their time solely on R&D.Their green technologies never compromise, saving their clients’ money through energy reductions, while always having a clear focus on sustainability.Their customer base is growing and already includes big players – they are a true force in sustainable development.”
